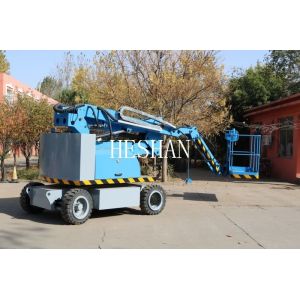

22M Articulated Boom Lift Telescopic Spider Cherry Picker Jlg Electric Manlift

22M Articulated Aerial Telescopic Spider Cherry Picker Jlg Manlift

Spider cherry picker electric manlifts are versatile pieces of equipment that can be used in various industries and applications. They are commonly used in construction, maintenance, and industrial applications for tasks such as painting, window cleaning, and equipment maintenance. Their compact size and narrow footprint make them ideal for use in indoor and outdoor spaces with limited access. Additionally, their electric motors provide clean and quiet operation, making them suitable for use in noise-sensitive environments. Overall, spider cherry picker electric manlifts offer a safe, efficient, and flexible alternative to traditional access equipment, making them a valuable tool for any industry that requires access to high and hard-to-reach areas.

Specification:

Model Type No.	GTZZ-12D	GTZZ-16D	GTZZ-20D	GTZZ-24D	GTZZ-25D	GTZZ-30D	GTZZ-38D	GTZZ-40D	GTZZ-45D
Working Height Max	14 m	18 m	22 m	26.2 m	27.1 m	32 m	40.1 m	42.3 m	47.8 m
Platform Height Max	12 m	16 m	20 m	24.2 m	25.1 m	30 m	38.1m	40.3 m	35.8 m
Working Radius Max	8 m	9.8 m	12.6 m	15.8 m	16 m	20.2 m	21.6 m	21.6 m	23 m
Lifting capacity	200kg	230 kg	230 kg	230 kg	230 kg	480 kg	480 kg	480kg	480 kg
Crossing Height	5m	7.75 m	9.2 m	9.8 m	9.2 m	12.2m	19.5m	19.5m	19.5m
Length( stowed) Ⓓ	5.3m	7.7 m	9.07 m	9.92 m	9.75 m	12.52 m	11.37 m	12.15m	11.6m
Width (stowed) Ⓔ	2m	2.28 m	2.38 m	2.48 m	2.58 m	2.5 m	2.5 m	2.49m	2.5 m
Height(stowed) Ⓒ	2.26m	2.38 m	2.49 m	2.82 m	2.8 m	3.17 m	3.17 m	3.17m	5.1 m
Wheel base Ⓕ	2.4m	2.45m	2.45m	3 m	3 m	3.66 m	3.96 m	3.96m	5.6 m
Ground clearance Ⓖ	200mm	0.43 m	0.43 m	0.43 m	0.43 m	0.43 m	0.43 m	0.43 m	0.38 m
Platform Ⓑ*Ⓐ	1.1*0.67m	1.83*0.76 m	1.83*0.76 m	1.83*0.76 m	1.83*0.76 m	2.44×0.91m	2.44×0.91m	2.44*0.91m	2.44×0.91m
Tuning radius (inside)	3.0m	2.61 m	2.66 m	2.6 m	2.6 m	2.74 m	3.13m	3.13m	2.69 m
Tuning radius(outside)	5.2m	5.61 m	5.66 m	5.85m	5.85 m	5.85 m	6.5m	6.5m	7.07 m
Speed(stowed)	3.2km/h	4.2km/h	4.2km/h	4.2 km/h	4.2 km/h	4.14 m	4.14 m	4.14m	4.4 km/h
Travel speed(raised)	0.8km/h	1.1km/h	1.1km/h	1.1km/h	1.1km/h	1.1km/h	1.1km/h	1.1km/h	1.1km/h
Turn table swing	360° Continuous
Platform Leveling	Automatic leveling
Swing Speed	0~0.8rpm	0~0.8rpm	0~0.8rpm	0~0.8rpm	0~0.8rpm	0~0.8rpm	0~0.8rpm	0~0.8rpm	0~0.8rpm
Grade ability	30%	45%	45%	45%	45%	45%	45%	45%	40%
Solid tire	33*12-20	33×12-20	33×12-20	36×14-20	385/65-24	385/65-22.5	385/65-22.5	445/65-22.5	445/65-22.5

22M Articulated Boom Lift Telescopic Spider Cherry Picker Jlg Electric Manlift

Features & Advantages

China's renowned YSD diesel pump station.
Electrical box with waterproof and dustproof features, ideal for outdoor use.
Control panel that is protected from rain.
Self-leveling feature for optimal and safe operation.
Water-resistant diesel engine, motor, and battery cover.
Maintenance access point designed for easy use.
Manually operated diesel engine accelerator, providing more flexible operation.
Double cylinders with balance valve and emergency decline switch, ensuring safety even in case of hydraulic hose rupture.
Basket leveling switch, making adjustments easier.
Torsion shaft with excellent shock absorption for improved road performance.
Hydraulic oil filtration alarm system that reminds you to replace oil if impurities are present.
Basket and arm lock system to prevent equipment body sway during transportation.
Illuminated platform for working.
Brake lights connected to the tractor.
Anti-pinch basket.
Safety harness for operator protection.
Stable rotary motor capable of 360-degree rotation.
Free quick wear parts for prompt replacement included in the offer.
Touch display fault code, easy maintenance.

Touch display fault code, easy maintenance.

If you need to work in challenging areas, our boom lift cherry pickers are the ideal solution. These articulated boom lifts are designed with the power and reach necessary to access work areas over obstacles and barriers. With a variety of sizes available, ranging from 14m to 20.23m, our machines are suitable for both indoor and outdoor use.

Enhanced Reach and Flexibility

Our Boom lifts are engineered to provide extended reach and exceptional flexibility, enabling you to access difficult-to-reach areas with ease. The extendable and rotating boom arm allows for precise positioning, whether it's construction projects, maintenance tasks, or other elevated operations. You can confidently navigate obstacles and work efficiently at different heights and angles.

Unrivaled Durability and Toughness

With rugged construction and superior engineering, our Boom lifts are built to withstand the harshest environments and deliver unmatched durability. Designed with heavy-duty components and corrosion-resistant materials, they can handle demanding work conditions, from extreme temperatures to rough terrains. Count on our Boom lifts to stand the test of time and maintain peak performance, reducing downtime and maximizing your investment.
