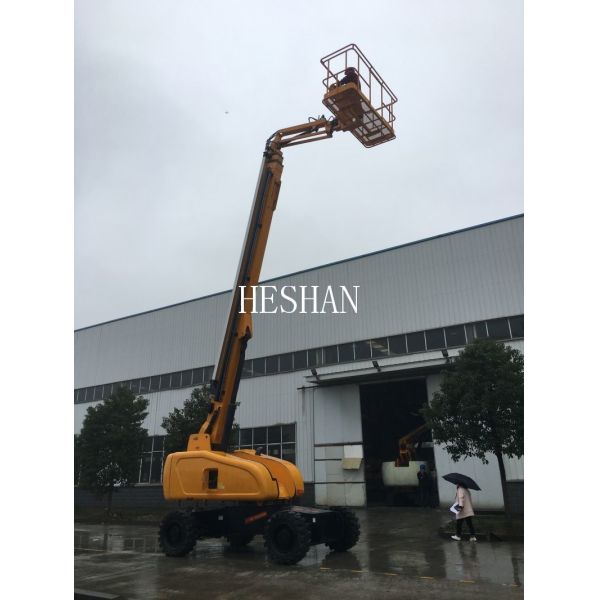

24m 26m 28m Articulated Boom Lift Self Propelled Small Electric Boom Lift

24m 26m 28m Self Propelled Electric Boom Lift Cheery Picker Articulating Lift

The cherry picker articulating lift has a range of working heights, typically between 10 and 50 meters, depending on the specific model. The lift can be used in a variety of working areas, including construction sites, building maintenance, industrial facilities, and entertainment venues. Before use, the cherry picker articulating lift must be inspected for any damage or defects, and operators must receive proper training and certification to ensure safe and efficient operation. Additionally, a risk assessment should be conducted to identify any potential hazards and to determine the appropriate safety measures. Overall, the cherry picker articulating lift is a versatile and valuable tool for any industry that requires access to high and hard-to-reach areas.

Specification:

Model Type No.	GTZZ-12D	GTZZ-16D	GTZZ-20D	GTZZ-24D	GTZZ-25D	GTZZ-30D	GTZZ-38D	GTZZ-40D	GTZZ-45D
Working Height Max	14 m	18 m	22 m	26.2 m	27.1 m	32 m	40.1 m	42.3 m	47.8 m
Platform Height Max	12 m	16 m	20 m	24.2 m	25.1 m	30 m	38.1m	40.3 m	35.8 m
Working Radius Max	8 m	9.8 m	12.6 m	15.8 m	16 m	20.2 m	21.6 m	21.6 m	23 m
Lifting capacity	200kg	230 kg	230 kg	230 kg	230 kg	480 kg	480 kg	480kg	480 kg
Crossing Height	5m	7.75 m	9.2 m	9.8 m	9.2 m	12.2m	19.5m	19.5m	19.5m
Length( stowed) Ⓓ	5.3m	7.7 m	9.07 m	9.92 m	9.75 m	12.52 m	11.37 m	12.15m	11.6m
Width (stowed) Ⓔ	2m	2.28 m	2.38 m	2.48 m	2.58 m	2.5 m	2.5 m	2.49m	2.5 m
Height(stowed) Ⓒ	2.26m	2.38 m	2.49 m	2.82 m	2.8 m	3.17 m	3.17 m	3.17m	5.1 m
Wheel base Ⓕ	2.4m	2.45m	2.45m	3 m	3 m	3.66 m	3.96 m	3.96m	5.6 m
Ground clearance Ⓖ	200mm	0.43 m	0.43 m	0.43 m	0.43 m	0.43 m	0.43 m	0.43 m	0.38 m
Platform Ⓑ*Ⓐ	1.1*0.67m	1.83*0.76 m	1.83*0.76 m	1.83*0.76 m	1.83*0.76 m	2.44×0.91m	2.44×0.91m	2.44*0.91m	2.44×0.91m
Tuning radius (inside)	3.0m	2.61 m	2.66 m	2.6 m	2.6 m	2.74 m	3.13m	3.13m	2.69 m
Tuning radius(outside)	5.2m	5.61 m	5.66 m	5.85m	5.85 m	5.85 m	6.5m	6.5m	7.07 m
Speed(stowed)	3.2km/h	4.2km/h	4.2km/h	4.2 km/h	4.2 km/h	4.14 m	4.14 m	4.14m	4.4 km/h
Travel speed(raised)	0.8km/h	1.1km/h	1.1km/h	1.1km/h	1.1km/h	1.1km/h	1.1km/h	1.1km/h	1.1km/h
Turn table swing	360° Continuous
Platform Leveling	Automatic leveling
Swing Speed	0~0.8rpm	0~0.8rpm	0~0.8rpm	0~0.8rpm	0~0.8rpm	0~0.8rpm	0~0.8rpm	0~0.8rpm	0~0.8rpm
Grade ability	30%	45%	45%	45%	45%	45%	45%	45%	40%
Solid tire	33*12-20	33×12-20	33×12-20	36×14-20	385/65-24	385/65-22.5	385/65-22.5	445/65-22.5	445/65-22.5

24m 26m 28m Articulated Boom Lift Self Propelled Small Electric Boom Lift

Features & Advantages

China's renowned YSD diesel pump station.
Electrical box with waterproof and dustproof features, ideal for outdoor use.
Control panel that is protected from rain.
Self-leveling feature for optimal and safe operation.
Water-resistant diesel engine, motor, and battery cover.
Maintenance access point designed for easy use.
Manually operated diesel engine accelerator, providing more flexible operation.
Double cylinders with balance valve and emergency decline switch, ensuring safety even in case of hydraulic hose rupture.
Basket leveling switch, making adjustments easier.
Torsion shaft with excellent shock absorption for improved road performance.
Hydraulic oil filtration alarm system that reminds you to replace oil if impurities are present.
Basket and arm lock system to prevent equipment body sway during transportation.
Illuminated platform for working.
Brake lights connected to the tractor.
Anti-pinch basket.
Safety harness for operator protection.
Stable rotary motor capable of 360-degree rotation.
Free quick wear parts for prompt replacement included in the offer.
Touch display fault code, easy maintenance.

Touch display fault code, easy maintenance.

Need to get up and over objects? Choose our articulating boom lifts. With their multiple boom sections, you can gain access to even the most hard-to-reach areas. And with a maximum working height of up to 20.23m, you can tackle any job with ease.

Quick Setup and Easy Transport:

Time is of the essence on job sites, and our Articulated Boom lift understands that. It features a quick setup process, allowing operators to get to work swiftly. Additionally, its lightweight construction and trailer-mounted options make transportation hassle-free. Spend less time on logistics and more time on productive work with our Articulated Boom lift.

Operator-Friendly Features:

We prioritize operator comfort and convenience in the design of our Articulated Boom lift. With features like adjustable seating, intuitive controls, and ergonomic platforms, operators can work efficiently and comfortably for extended periods. The focus on operator-friendly features enhances productivity and reduces operator fatigue.
